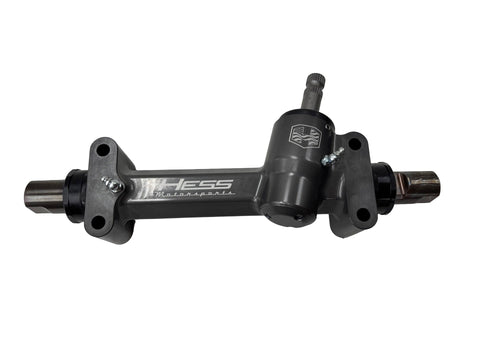

The Hess Motorsports Honda Pioneer 1000 Steering Rack

We put a lot of thought into this rack, and wanted to make it very maintenance friendly and extremely durable. Our rack is machined in house out of 6061 Billet Aluminum. We have designed this rack to be completely rebuildable. To reduce steering effort we have the pinion gear running on not one but two ball bearings and are using a very strong composite material that is embedded with Moly for our rack bushings. What does Moly do? Well, the Moly particles act as a dry lubricant to enhance the load bearing and wear capabilities while offering improved strength and rigidity while maintaining better fit and clearances. It also has less tendency to seize as bearings. We also tightened the tolerances and added a much larger support area to the rack gear to aid in strength and to prevent it from being damaged which is why we do not use a sprung tensioner on our rack. We have made the whole thing greaseable.

Rack:

Fully Rebuildable
Greaseable
Machined 6061 Billet Aluminum
Larger Rack Gear- Nearly 30%
85% Larger Pinion Sub Bearing for increased Torque Resistance
200% Increase in Bushing Contact Area
Moly Filled Bushings
Modular Design so bushings can easily be replaced without rack removal
Anodized for lasting finish
Includes Larger Tie rod Boots
Includes EZ install Nut Plate
Race Tested
Made in the USA

Billet Steering Rack - Honda Pioneer 1000 (3)(5)(6)
